AL SERIES LEAF CHAIN / 美規堆高機鏈條

下載專區

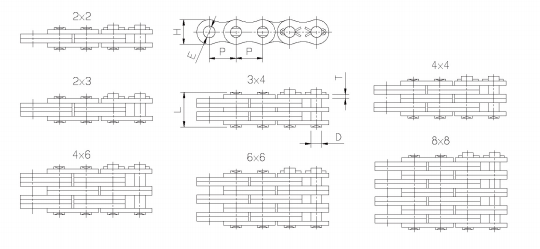

CHAIN NO.	Lacing	Pitch		Plate			Pin		Ultimate Strength Kgf(ave.)	Approx Weight Kg/m
		P		Height	Hole	Thickness	Dia	Length
		inch	mm	H(max)	E(min)	T	D(max)	L(max)
AL422 AL444 AL466	2x2 4x4 6x6	1/2”	12.70	10.41	4.00	1.5	3.98	8.43 14.88 21.34	1800 3600 5400	0.36 0.71 1.22
AL522 AL523 AL544 AL566 AL588	2x2 2x3 4x4 6x6 8x8	5/8”	15.875	13.03	5.12	2.0	5.09	11.02 13.16 19.51 27.99 36.48	3100 3100 6200 9300 12400	0.63 0.78 1.23 2.10 2.46
AL622 AL623 AL644 AL646 AL666 AL688	2x2 2x3 4x4 4x6 6x6 8x8	3/4”	19.05	15.62	5.98	2.4	5.96	12.87 15.37 22.78 27.74 32.69 42.60	4400 4400 8800 8800 13200 17600	0.90 1.12 1.78 2.25 3.03 3.6
AL822 AL844 AL866 AL888	2x2 4x4 6x6 8x8	1”	25.40	20.83	7.96	3.2	7.94	17.36 30.78 44.20 57.61	7800 15600 23400 31200	1.48 2.92 4.97 5.78
AL1022 AL1044 AL1066 AL1088	2x2 4x4 6x6 8x8	1-1/4”	31.75	26.04	9.56	4.0	9.54	21.34 37.90 54.46 71.02	11500 23000 34500 46000	2.35 4.61 7.88 9.23
AL1222 AL1244 AL1266	2x2 4x4 6x6	1-1/2”	38.10	31.24	11.14	4.8	11.11	25.38 45.19 65.00	15500 31000 46500	3.4 6.65 10.14
AL1444 AL1466	4x4 6x6	1-3/4”	44.45	36.45	12.74	5.6	12.71	52.88 76.15	41000 62000	10.34 15.16
AL1644 AL1666 AL1688	4x4 6x6 8x8	2”	50.80	41.65	14.31	6.4	14.29	59.97 86.39 112.81	50000 75000 100000	12.98 19.41 25.84

Any other enquiry than above spec. is welcomed.
