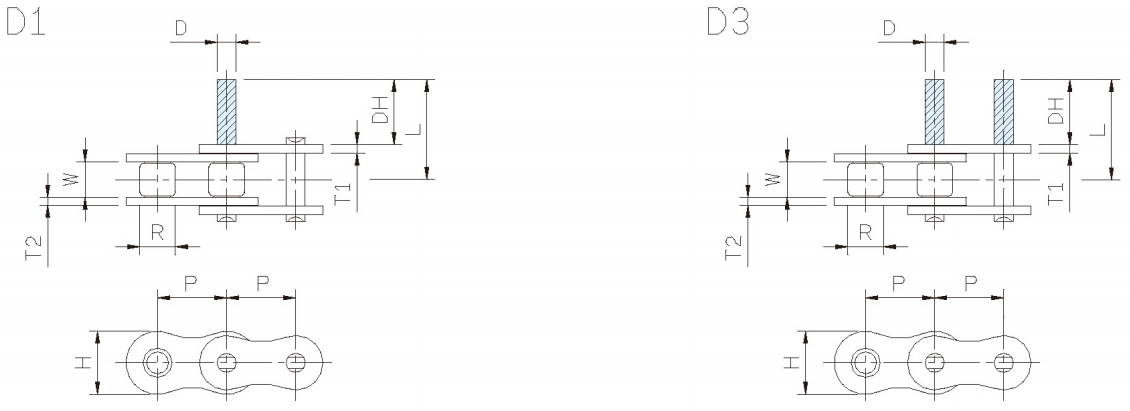

D1 & D3 ATT STAINLESS STEEL / D1 & D3 配件不鏽鋼鏈條

下載專區

D1 & D3 配件不鏽鋼鏈條.png

CHAIN NO.	Pitch		Width	Roller	Plate			Pin			Allowable Load Kgf(max)
	P		W	Dia	Height	Thickness		Dia	Length
	inch	mm	(min)	R(max)	H(max)	T1	T2	D(max)	*DH	L
06BSS	0.375”	9.525	5.72	6.35	8.26	1.00	1.30	3.28	11.30	16.63	27
08BSS	0.5”	12.70	7.75	8.51	11.81	1.50	1.50	4.45	14.80	22.05	50
10BSS	0.625”	15.875	9.65	10.16	14.73	1.50	1.50	5.08	17.60	26.05	66
12BSS	0.75”	19.05	11.68	12.07	16.13	1.70	1.80	5.72	20.70	30.48	90
16BSS	1”	25.40	17.02	15.88	21.80	3.20	4.00	8.28	33.30	49.33	209

DH length (Pin extension) per requested.

Note: AISI 304 chain is with slightly magnetic due to cold forming of parts.

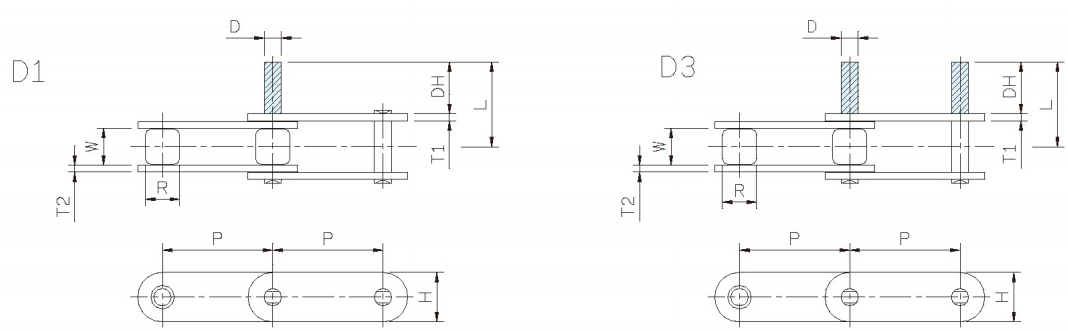

D1 & D3 配件不鏽鋼鏈條-1.png

CHAIN NO.	Pitch		Width	Roller	Plate			Pin			Allowable Load Kgf(max)
	P		W	Dia	Height	Thickness		Dia	Length
	inch	mm	(min)	R(max)	H(max)	T1	T2	D(max)	*DH	L
A2040SS	1”	25.40	7.85	7.92	12.0	1.50	1.50	3.98	9.52	16.72	45
A2050SS	1-1/4”	31.75	9.40	10.16	15.0	2.00	2.00	5.09	11.91	20.96	70
C2040SS	1”	25.40	7.85	7.92	12.0	1.50	1.50	3.98	9.52	16.72	45
C2042SS	1”	25.40	7.85	15.88	12.0	1.50	1.50	3.98	9.52	16.72	45
C2050SS	1-1/4”	31.75	9.40	10.16	15.0	2.00	2.00	5.09	11.91	20.96	70
C2052SS	1-1/4”	31.75	9.40	19.05	15.0	2.00	2.00	5.09	11.91	20.96	70
C2060HSS	1-1/2”	38.10	12.57	11.91	18.0	3.20	3.20	5.96	14.27	27.07	105
C2062HSS	1-1/2”	38.10	12.57	22.23	18.0	3.20	3.20	5.96	14.27	27.07	105
C2080HSS	2”	50.80	15.75	15.88	24.10	4.00	4.00	7.94	19.05	35.18	180
C2082HSS	2”	50.80	15.75	28.58	24.10	4.00	4.00	7.94	19.05	35.18	180

DH length (Pin extension) per requested.

Note: AISI 304 chain is with slightly magnetic due to cold forming of parts.
