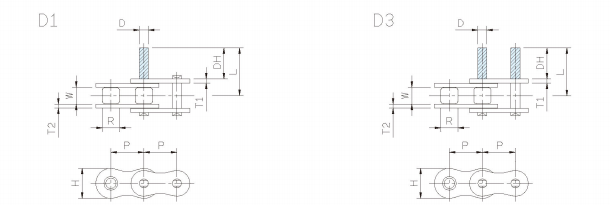

D1 & D3 ATTACHMENTS / 不鏽鋼 D1 & D3 配件鏈條
下載專區
CHAIN NO. | Pitch | Width | Roller | Plate | Pin | Allowable Load Kgf(max) | |||||
P | W | Dia | Height | Thickness | Dia | Length | |||||
inch | mm | (min) | R(max) | H(max) | T1 | T2 | D(max) | *DH | L | ||
06BSS | 0.375” | 9.525 | 5.72 | 6.35 | 8.26 | 1.00 | 1.30 | 3.28 | 11.30 | 16.63 | 27 |
08BSS | 0.5” | 12.70 | 7.75 | 8.51 | 11.81 | 1.50 | 1.50 | 4.45 | 14.80 | 22.05 | 50 |
10BSS | 0.625” | 15.875 | 9.65 | 10.16 | 14.73 | 1.50 | 1.50 | 5.08 | 17.60 | 26.05 | 66 |
12BSS | 0.75” | 19.05 | 11.68 | 12.07 | 16.13 | 1.70 | 1.80 | 5.72 | 20.70 | 30.48 | 90 |
16BSS | 1” | 25.40 | 17.02 | 15.88 | 21.80 | 3.20 | 4.00 | 8.28 | 33.30 | 49.33 | 209 |
DH length (Pin extension) per requested.
Note: AISI 304 chain is with slightly magnetic due to cold forming of parts.
CHAIN NO. | Pitch | Width | Roller | Plate | Pin | Allowable Load Kgf(max) | |||||
P | W | Dia | Height | Thickness | Dia | Length | |||||
inch | mm | (min) | R(max) | H(max) | T1 | T2 | D(max) | *DH | L | ||
A2040SS | 1” | 25.40 | 7.85 | 7.92 | 12.0 | 1.50 | 1.50 | 3.98 | 9.52 | 16.72 | 45 |
A2050SS | 1-1/4” | 31.75 | 9.40 | 10.16 | 15.0 | 2.00 | 2.00 | 5.09 | 11.91 | 20.96 | 70 |
C2040SS | 1” | 25.40 | 7.85 | 7.92 | 12.0 | 1.50 | 1.50 | 3.98 | 9.52 | 16.72 | 45 |
C2042SS | 1” | 25.40 | 7.85 | 15.88 | 12.0 | 1.50 | 1.50 | 3.98 | 9.52 | 16.72 | 45 |
C2050SS | 1-1/4” | 31.75 | 9.40 | 10.16 | 15.0 | 2.00 | 2.00 | 5.09 | 11.91 | 20.96 | 70 |
C2052SS | 1-1/4” | 31.75 | 9.40 | 19.05 | 15.0 | 2.00 | 2.00 | 5.09 | 11.91 | 20.96 | 70 |
C2060HSS | 1-1/2” | 38.10 | 12.57 | 11.91 | 18.0 | 3.20 | 3.20 | 5.96 | 14.27 | 27.07 | 105 |
C2062HSS | 1-1/2” | 38.10 | 12.57 | 22.23 | 18.0 | 3.20 | 3.20 | 5.96 | 14.27 | 27.07 | 105 |
C2080HSS | 2” | 50.80 | 15.75 | 15.88 | 24.10 | 4.00 | 4.00 | 7.94 | 19.05 | 35.18 | 180 |
C2082HSS | 2” | 50.80 | 15.75 | 28.58 | 24.10 | 4.00 | 4.00 | 7.94 | 19.05 | 35.18 | 180 |
DH length (Pin extension) per requested.
Note: AISI 304 chain is with slightly magnetic due to cold forming of parts.
