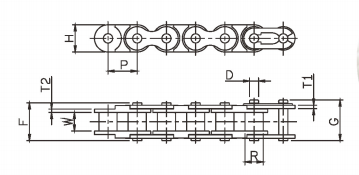

CHAIN

NO.

Pitch

Width

Roller

Plate

Pin

Allowable

Load

Kgf(max)

Approx

Weight

Kg/m

P

W

Dia

Height

Thickness

Dia

Length

inch

mm

(min)

R(max)

H(max)

T1

T2

D(max)

F

G

SS25PC

1/4”

6.35

3.10

3.30

6.02

0.75

1.30

2.31

9.1

11.6

8

0.095

SS35PC

3/8”

9.525

4.68

5.08

9.05

1.20

2.20

3.60

13.2

16.5

18

0.22

SS40PC

1/2”

12.70

7.85

7.92

12.07

1.50

1.50

3.98

17.8

21.7

45

0.39

SS50PC

5/8”

15.875

9.40

10.16

15.09

2.00

2.00

5.09

21.8

25.9

70

0.58

SS60PC

3/4”

19.05

12.57

11.91

18.10

2.40

2.40

5.96

26.9

31.5

90

0.82

SS06BPC

0.375”

9.525

5.72

6.35

8.60

1.00

1.30

3.28

13.5

16.8

20

0.22

SS08BPC

0.5”

12.70

7.75

8.51

11.81

1.50

1.50

4.45

17.0

20.9

47

0.37

SS10BPC

0.625”

15.875

9.65

10.16

14.73

1.50

1.50

5.08

19.6

23.7

54

0.51

SS12BPC

0.75”

19.05

11.68

12.07

16.13

1.70

1.80

5.72

22.7

27.3

71

0.68

Food grade (FG.) FDA approved blue plastic material is available at request.
