STAINLESS STEEL ATTACHMENTS CONVEYOR CHAINS / 不鏽鋼雙節距配件輸送鏈條
下載專區

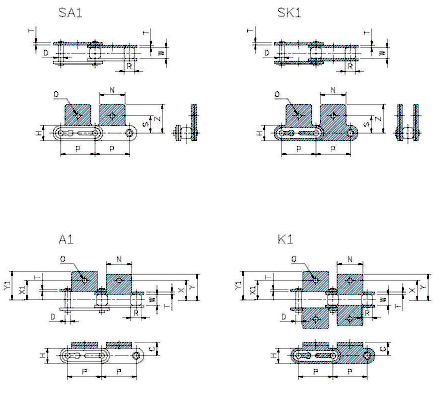

CHAIN NO. | Pitch | Width | Roller | Plate | Pin | Attachment | Allowable Load Kgf(max) | ||||||||||||
P | W | Dia | Height | Thick | Dia |
| A-1 K-1 | SA-1 SK-1 | A-1,K-1 | SA-1,SK-1 | |||||||||
inch | mm | (min) | R(max) | H(max) | T | D(max) | N | O(min) | C | X | Y | X1 | Y1 | S | Z | ||||
C2040SS | 1” | 25.40 | 7.85 | 7.92 | 12.0 | 1.50 | 3.98 | 19.10 | 3.50 | 5.10 | 9.10 | 12.70 | 17.65 | 12.70 | 19.30 | 11.10 | 19.80 | 45 | |
C2042SS | 1” | 25.40 | 7.85 | 15.88 | 12.0 | 1.50 | 3.98 | 19.10 | 3.50 | 5.10 | 9.10 | 12.70 | 17.65 | 12.70 | 19.30 | 11.10 | 19.80 | 45 | |
C2050SS | 1-1/4” | 31.75 | 9.40 | 10.16 | 15.0 | 2.00 | 5.09 | 23.80 | 5.10 | 6.70 | 11.10 | 15.90 | 21.95 | 15.90 | 24.15 | 14.25 | 24.10 | 70 | |
C2052SS | 1-1/4” | 31.75 | 9.40 | 19.05 | 15.0 | 2.00 | 5.09 | 23.80 | 5.10 | 6.70 | 11.10 | 15.90 | 21.95 | 15.90 | 24.15 | 14.25 | 24.10 | 70 | |
C2060HSS | 1-1/2” | 38.10 | 12.57 | 11.91 | 18.0 | 3.20 | 5.96 | 28.60 | 5.10 | 8.60 | 14.70 | 21.45 | 28.20 | 21.45 | 31.45 | 17.50 | 31.55 | 105 | |
C2062HSS | 1-1/2” | 38.10 | 12.57 | 22.23 | 18.0 | 3.20 | 5.96 | 28.60 | 5.10 | 8.60 | 14.70 | 21.45 | 28.20 | 21.45 | 31.45 | 17.50 | 31.55 | 105 | |
C2080HSS | 2” | 50.80 | 15.75 | 15.88 | 24.1 | 4.00 | 7.94 | 38.10 | 6.70 | 10.20 | 19.10 | 27.80 | 36.52 | 27.80 | 40.70 | 22.20 | 40.50 | 180 | |
C2082HSS | 2” | 50.80 | 15.75 | 28.58 | 24.1 | 4.00 | 7.94 | 38.10 | 6.70 | 10.20 | 19.10 | 27.80 | 36.52 | 27.80 | 40.70 | 22.20 | 40.50 | 180 | |
Any special specifications, please feel free to contact us. Note: AISI 304 chain is with slightly magnetic due to cold forming of parts. | |||||||||||||||||||

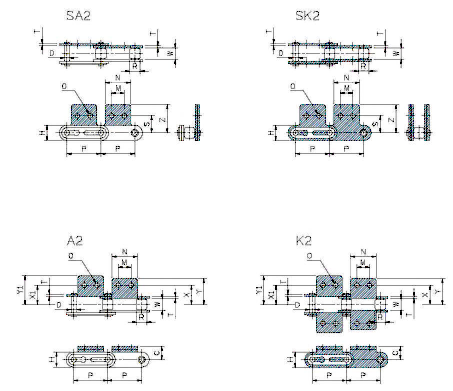

CHAIN NO. | Pitch | Width | Roller | Plate | Pin | Attachment | Allowable Load Kgf(max) | |||||||||||||
