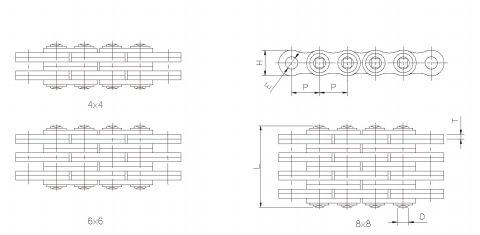

CHAIN NO. | Lacing | Pitch | Plate | Pin | Ultimate Strength Kgf(ave.) | Approx Weight Kg/m | ||||
P | Height | Hole | Thickness | Dia | Length | |||||
inch | mm | H(max) | E(min) | T | D(max) | L | ||||
BL1444UB BL1446UB BL1466UB BL1488UB | 4x4 4x6 6x6 8x8 | 1-3/4” | 44.45 | 42.24 | 14.31 | 6.4 | 14.29 | 65.45 78.55 91.85 118.15 | 52000 52000 78000 104000 | 14.04 17.55 20.78 27.36 |
BL1644UB BL1646UB BL1666UB BL1688UB | 4x4 4x6 6x6 8x8 | 2” | 50.80 | 48.26 | 17.49 | 7.2 | 17.46 | 72.75 87.70 101.95 131.75 | 66000 66000 99000 132000 | 18.06 22.37 26.60 35.13 |
|
|
|
|
|
| |||||
|
|
|
|
|
| |||||
|
|
|
|
|
| |||||
Any other enquiry than above spec. is welcomed.

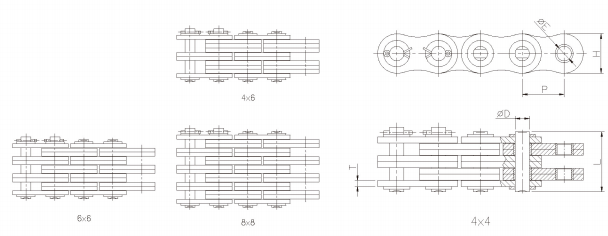

CHAIN NO. | Lacing | Pitch | Plate | Pin | Ultimate Strength Kgf(ave.) | Approx Weight Kg/m | ||||
P | Height | Hole | Thickness | Dia | Length | |||||
inch | mm | H(max) | E(min) | T | D(max) | L | ||||
LL2444U LL2466U LL2488U | 4x4 6x6 8x8 | 1-1/2” | 38.10 | 33.73 | 14.65 | 5.00 | 14.63 | 52.70 72.70 93.70 | 36000 54000 72000 | 9.04 13.08 17.21 |
