HOLLOW PIN CHAINS / 空心軸鏈條


CHAIN NO.	Pitch		Width	Roller	Plate			Pin			Ultimate Strength Kgf(min)	Approx Weight Kg/m

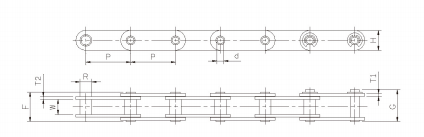

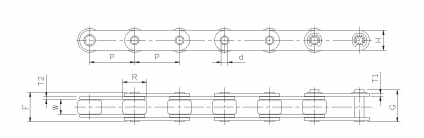

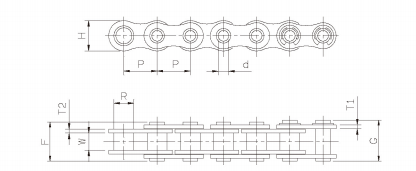

	P		W	Dia	Height	Thickness		Dia	Length
	inch	mm	(min)	R(max)	H(max)	T1	T2	d(min)	F(max)	G(max)
40HP	1/2”	12.70	7.85	7.92	12.07	1.50	1.50	4.00	16.76	20.66	794	0.5
50HP	5/8”	15.875	9.40	10.16	15.09	2.00	2.00	5.12	20.83	24.93	1135	0.8
60HP	3/4”	19.05	12.57	11.91	18.10	2.40	2.40	5.98	25.91	30.51	2315	1.18
80HP	1”	25.40	15.75	15.88	24.13	3.20	3.20	7.96	33.02	38.42	4176	2.10
08BHP	1/2”	12.70	7.75	8.51	11.81	1.50	1.50	4.50	16.5	17.6	1000	0.63
HP chain standard is rollerless , R indicates bushing diameter.


CHAIN NO.	Pitch		Width	Roller	Plate			Pin			Ultimate Strength Kgf(min)	Approx Weight Kg/m
	P		W	Dia	Height	Thickness		Dia	Length
	inch	mm	(min)	R(max)	H(max)	T1	T2	d(min)	F(max)	G(max)
C2040HP	1”	25.40	7.85	7.92	12.0	1.50	1.50	4.00	16.76	20.66	794	0.45
C2050HP	1-1/4”	31.75	9.40	10.16	15.0	2.00	2.00	5.12	20.83	24.93	1135	0.74
C2060HP	1-1/2	38.10	12.57	11.91	18.0	2.40	2.40	5.98	25.91	30.51	2315	1.10
C2080HP	2”	50.80	15.75	15.88	24.1	3.20	3.20	7.96	33.02	38.42	4176	1.95
HP chain standard is rollerless , R indicates bushing diameter.
